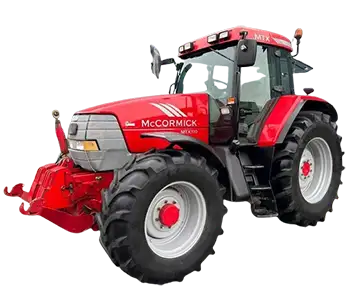

McCormick MTX110

McCormick MTX110, MTX125, MTX140, MTX155, MTX175 – specs, opinions & photos

Looking for information about agricultural tractors McCormick MTX110, MTX125, MTX140, MTX155, MTX175? In this article, you'll find answers to questions such as:

  • How much horsepower does each model have?
  • What is the engine capacity of these models?
  • What is the hydraulic pump output for each one?
  • What is the PTO speed of these tractors?

With a spec sheet presented in table form, comparing the tractors is quick and easy, and user reviews will help you make the right choice.

Table of contents:

Technical specifications of the agricultural tractors McCormick MTX110, MTX125, MTX140, MTX155, MTX175:

McCormick MTX110
McCormick MTX125
McCormick MTX140
McCormick MTX155
McCormick MTX175

McCormick MTX110

  • Years of production: –
  • Maximum engine power (HP) / at RPM: 118/2200
  • Number of gearbox speeds (forward + reverse): 16+12
  • Maximum speed (km/h): 40
  • Fuel tank capacity (L): 265

McCormick MTX125

  • Years of production: –
  • Maximum engine power (HP) / at RPM: 132/2200
  • Number of gearbox speeds (forward + reverse): 16+12
  • Maximum speed (km/h): 40
  • Fuel tank capacity (L): 265

McCormick MTX140

  • Years of production: –
  • Maximum engine power (HP) / at RPM: 147/2200
  • Number of gearbox speeds (forward + reverse): 16+12
  • Maximum speed (km/h): 40
  • Fuel tank capacity (L): 265

McCormick MTX155

  • Years of production: –
  • Maximum engine power (HP) / at RPM: 163/2200
  • Number of gearbox speeds (forward + reverse): 16+12
  • Maximum speed (km/h): 40
  • Fuel tank capacity (L): 347

McCormick MTX175

  • Years of production: –
  • Maximum engine power (HP) / at RPM: 176/2200
  • Number of gearbox speeds (forward + reverse): 16+12
  • Maximum speed (km/h): 40
  • Fuel tank capacity (L): 347

For details and a comparison of the tractors, see the technical sheet below.

Advertisement

Technical Data Sheet for McCormick MTX110, MTX125, MTX140, MTX155, MTX175 tractors:

Comparison of technical parameters of agricultural tractors
Model McCormick MTX110 McCormick MTX125 McCormick MTX140 McCormick MTX155 McCormick MTX175
Years of production – – – – –
Engine designation/type 1006-60T 1006-60T 1006-60T 1006-60TWI 1006-60TWI
Number of cylinders / Turbo / Intercooler 6T 6T 6T 6TI 6TI
Engine displacement (cm³) 6000 6000 6000 6000 6000
Piston diameter / Stroke (mm) 100×127 100×127 100×127 100×127 100×127
Maximum engine power (HP) / at RPM 118/2200 132/2200 147/2200 163/2200 176/2200
Torque (Nm) / at RPM 465/1400 516/1400 588/1400 663/1400 695/1400
Number of gearbox speeds (forward + reverse) 16+12 16+12 16+12 16+12 16+12
Number of synchronized gears (forward + reverse) 16+12 16+12 16+12 16+12 16+12

Advertisement

Fast gearbox / Power shift 4 4 4 4 4
Reverser type hydr hydr hydr hydr hydr
Speed range (km/h) 2,8-37,0 2,8-37,0 2,8-37,0 3,0-40,2 3,0-40,2
Maximum speed (km/h) 40 40 40 40 40
Hydraulic pump capacity (L/min) 109 109 109 121 121
Rear three-point hitch (TUV) control type ehr ehr ehr ehr ehr
Maximum rear three-point hitch (TUV) lift capacity (kg) 5870 (6600) 5870 (6600) 6600 8330 8330
Power take-off (PTO) speed (RPM) 540/1000 540/1000 540/1000 540/1000 540/1000
Type of disc brake (dry/wet) – – – – –
Brake system control type – – – – –
Turning radius 2WD (m) – – – – –
Turning radius 4WD (m) 9,3 9,3 9,3 10,6 10,6

Advertisement

Front tire size 2WD – – – – –
Front tire size 4WD 14.9R28 14.9R28 420/70R28 480/70R30 540/65R30
Rear tire size 2WD – – – – –
Rear tire size 4WD 18.4R38 18.4R38 520/70R38 20.8R42 650/65R42
Total weight 2WD (kg) – – – – –
Total weight 4WD (kg) 5900 6000 6160 7310 7510
Total height with cabin (cm) 288 288 292 294 294
Total length (cm) 516 516 516 523 523
Total width (cm) 277 277 277 285 285
Fuel tank capacity (L) 265 265 265 347 347
Cabin noise level (dB) 75 74 73 74 75

Fuel consumption and user reviews of tractors McCormick MTX110, MTX125, MTX140, MTX155, MTX175:

Add your opinion:

Easy work 0.0 l/h
Medium work 0.0 l/h
Hard work 0.0 l/h

Opinions posted:

No opinions.

Average fuel consumption:

Easy - l/h
Medium - l/h
Hard - l/h

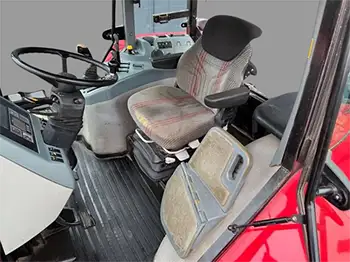

McCormick MTX110, MTX125, MTX140, MTX155, MTX175 Gallery:
