Same Argon 3 65, 75, 80 ⚙️ Specs

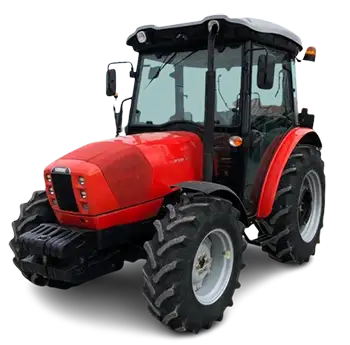

Technical Specifications of the Same Argon 3 65 Agricultural Tractor:

The Same Argon 3 65 Tractor was produced between 2009 and 2017 and is equipped with a three-cylinder turbocharged engine, model 1000.3 WT E3, with a displacement of 3,000 cm³. The maximum power output is 59 HP at 2,200 RPM, with a torque of 240 Nm at 1,600 RPM. The transmission system includes a synchronized gearbox with either 12+3 or an optional 15+15 gears, featuring a mechanical shuttle. The maximum speed is 40 km/h. The hydraulic system features a pump with a flow rate of 45 l/min, a mechanically controlled rear linkage, and a maximum lifting capacity of 3,000 kg. The power take-off (PTO) operates at 540 RPM. The turning radius in the 4WD version is 7.4 meters. The front tires are sized 280/85R20, while the rear tires are 380/85R28. The total weight of the tractor is 2,800 kg. The cab height is 252 cm, with an overall length of 362 cm, a width of 198 cm, and a fuel tank capacity of 70 liters.

Advertisement

Technical Data Sheet for Same Argon 3 65, 75, 80 Tractors:

Model Same Argon3 65 Same Argon3 75 Same Argon3 80
Years of production 2009-17 2009-17 2010-17
Engine model / type 1000.3 WT E3 1000.3 WTI E3 1000.4 WTI E3
Number of cylinders / turbocharging 3T 3TI 4TI
Engine displacement (cm3) 3000 3000 4000
Piston dimension / stroke (mm) 105×115,5 105×115,5 105×115,5
Maximum engine power (hp) / rpm 59/2200 69/2200 72/2200
Torque (Nm) / rpm 240/1600 265/1600 285/1600
Number of gears (front + rear) 12+3/15+15 15+15 15+15
Number of synchronized gears (front+rear) 12+3/15+15 15+15 15+15

Advertisement

Speed-Shift
Type of reverse mech mech mech
Driving speed (km/h)
Max Driving speed (km/h) 40 40 40
Hydraulic pump capacity (L/min) 45 45 45
3-Point Hitch control mech mech mech
3-point hitch max load (kg) 3000 3000 3000
PTO speed (rpm) 540 540 540
Disc brake type (dry / wet)
Type of control of the braking system
Turning radius 2WD (m)
Turning radius 4WD (m) 7,4 7,4 7,4

Advertisement

Front wheel 2WD
Front wheel 4WD 280/85R20 280/85R20 11.2R24
Rear wheel 2WD
Rear wheel 4WD 380/85R28 380/85R28 16.9R30
2WD total weight (kg)
4WD total weight (kg) 2800 2800 2900
Total height with cabin (cm) 252 252 252
Total length (cm) 362 362 375
Total width (cm) 198 198 202
Fuel tank capacity (l) 70 70 70
Cabin sound level (dB)

Advertisement
