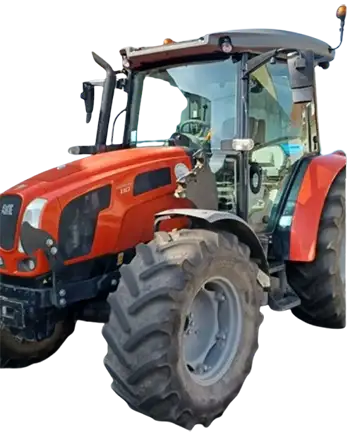

Technical specifications of the agricultural tractor Same Explorer HD 90.4/HD 105.4/HD 115.4/HD 110/HD 120:
Advertisement
| Model | Same Explorer HD 90.4 | Same Explorer HD 105.4 | Same Explorer HD 115.4 | Same Explorer HD 110 | Same Explorer HD 120 |
| Years of production | 2014-16 | 2014-16 | 2014-16 | 2017- | 2017- |
| Engine model / type | FARMotion | FARMotion | FARMotion | FARMotion | FARMotion |
| Number of cylinders / turbocharging | 4TI | 4TI | 4TI | 4TI | 4TI |
| Engine displacement (cm3) | 3849 | 3849 | 3849 | 3849 | 3849 |
| Piston dimension / stroke (mm) | 103×115,5 | 103×115,5 | 103×115,5 | 103×115,5 | 103×115,5 |
| Maximum engine power (hp) / rpm | 84/2200 | 97/2200 | 103/2200 | 101/2200 | 110/2200 |
| Torque (Nm) / rpm | 354/1600 | 408/1600 | 436/1600 | 424/1600 | 462/1600 |
| Number of gears (front + rear) | 8+8…40+40 | 8+8…40+40 | 10+10…60+60 | 8+8…40+40 | 10+10…60+60 |
| Number of synchronized gears (front+rear) | 8+8…40+40 | 8+8…40+40 | 10+10…60+60 | 8+8…40+40 | 10+10…60+60 |
Advertisement
| Speed-Shift | hydr | hydr | hydr | hydr | hydr |
| Type of reverse | mech/hydr | mech/hydr | mech/hydr | mech/hydr | mech/hydr |
| Driving speed (km/h) | – | – | – | – | – |
| Max Driving speed (km/h) | 40 | 40 | 40 | 40 | 40 |
| Hydraulic pump capacity (L/min) | 55 | 55 | 55 | 55 | 55 |
| 3-Point Hitch control | ehr | ehr | ehr | ehr | ehr |
| 3-point hitch max load (kg) | 3600 (4855) | 3600 (4855) | 3600 (5410) | 3600 (4855) | 3600 (5410) |
| PTO speed (rpm) | 540/1000 | 540/1000 | 540/1000 | 540/1000 | 540/1000 |
| Disc brake type (dry / wet) | – | – | – | – | – |
| Type of control of the braking system | – | – | – | – | – |
| Turning radius 2WD (m) | – | – | – | – | – |
| Turning radius 4WD (m) | – | – | – | – | – |
Advertisement
| Front wheel 2WD | – | – | – | – | – |
| Front wheel 4WD | 420/70R24 | 420/70R24 | 420/70R28 | 420/70R24 | 420/70R24 |
| Rear wheel 2WD | – | – | – | – | – |
| Rear wheel 4WD | 480/70R34 | 480/70R34 | 480/70R38 | 480/70R34 | 480/70R34 |
| 2WD total weight (kg) | – | – | – | – | – |
| 4WD total weight (kg) | 4200 | 4200 | 4300 | 4200 | 4300 |
| Total height with cabin (cm) | 273 | 273 | 273 | 273 | 273 |
| Total length (cm) | 431 | 431 | 431 | 427 | 427 |
| Total width (cm) | 236/240 | 236/240 | 236/240 | 236/240 | 236/240 |
| Fuel tank capacity (l) | 152 | 152 | 152 | 145+10AB | 145+10AB |
| Cabin sound level (dB) | – | – | – | – | – |
