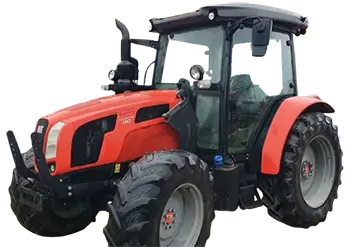

Technical specifications of the agricultural tractor Same Explorer LD 80/LD 90/LD 100:
Advertisement
| Model | Same Explorer LD 80 | Same Explorer LD 90 | Same Explorer LD 100 |
| Years of production | 2014- | 2014- | 2014-16 |
| Engine model / type | FARMotion | FARMotion | FARMotion |
| Number of cylinders / turbocharging | 3TI | 3TI | 3TI |
| Engine displacement (cm3) | 2887 | 2887 | 2887 |
| Piston dimension / stroke (mm) | 103×115,5 | 103×115,5 | 103×115,5 |
| Maximum engine power (hp) / rpm | 75/2200 | 84/2200 | 92/2200 |
| Torque (Nm) / rpm | 342/1600 | 354/1600 | 369/1600 |
| Number of gears (front + rear) | – | – | – |
| Number of synchronized gears (front+rear) | – | – | – |
Advertisement
| Speed-Shift | hydr | hydr | hydr |
| Type of reverse | mech/hydr | mech/hydr | mech/hydr |
| Driving speed (km/h) | – | – | – |
| Max Driving speed (km/h) | 40 | 40 | 40 |
| Hydraulic pump capacity (L/min) | 55 (60) | 55 (60) | 55 (60) |
| 3-Point Hitch control | mech/ehr | mech/ehr | mech/ehr |
| 3-point hitch max load (kg) | 3500 (4525) | 3500 (4525) | 3500 (4525) |
| PTO speed (rpm) | 540 (540/750/ | 540 (540/750/ | 540 (540/750/ |
| Disc brake type (dry / wet) | – | – | – |
| Type of control of the braking system | – | – | – |
| Turning radius 2WD (m) | – | – | – |
| Turning radius 4WD (m) | – | – | – |
Advertisement
| Front wheel 2WD | – | – | – |
| Front wheel 4WD | 320/70R20 | 320/70R20 | 320/70R20 |
| Rear wheel 2WD | – | – | – |
| Rear wheel 4WD | 420/70R30 | 420/70R30 | 420/70R30 |
| 2WD total weight (kg) | – | – | – |
| 4WD total weight (kg) | 3600 | 3600 | 3600 |
| Total height with cabin (cm) | 260 | 260 | 260 |
| Total length (cm) | 410 | 410 | 410 |
| Total width (cm) | 226/230 | 226/230 | 226/230 |
| Fuel tank capacity (l) | 135 /115+8AB | 135 / 115+8AB | 135 / 115+8AB |
| Cabin sound level (dB) | 81 | 81 | – |
