Technical specifications of the combine harvesters Braud 502, 503, 504, 505:
Braud 502
- Years of production: 1968-76
- Rated engine power (HP): 65
- Fuel tank capacity (L): 112
- Cutting unit/header working width (cm): 280
- Grain tank capacity (hl): 21

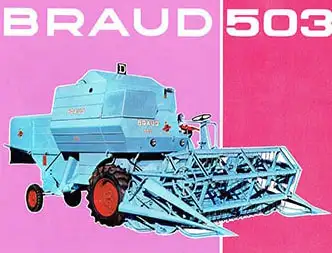

Braud 503
- Years of production: 1968-76
- Rated engine power (HP): 83
- Fuel tank capacity (L): 112
- Cutting unit/header working width (cm): 280
- Grain tank capacity (hl): 21

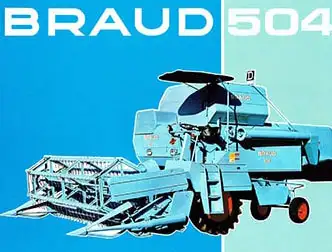

Braud 504
- Years of production: 1968-
- Rated engine power (HP): 90
- Fuel tank capacity (L): 170
- Cutting unit/header working width (cm): 310
- Grain tank capacity (hl): 32
Braud 505
- Years of production: 1967-73
- Rated engine power (HP): 95/100
- Fuel tank capacity (L): 170
- Cutting unit/header working width (cm): 360
- Grain tank capacity (hl): 32
For details and a comparison of the combines, see the technical sheet below.
Advertisement
Data sheet for Braud 504, 502, 503, 505 combine harvesters:
| Model | Braud 502 | Braud 503 | Braud 504 | Braud 505 |
|---|---|---|---|---|
| Years of production | 1968-76 | 1968-76 | 1968- | 1967-73 |
| Engine manufacturer | Perkins | Perkins | Perkins | Perkins |
| Engine designation/type | A4.203 | A4.236 | A6.305 | A6.354 |
| Engine displacement (cm³) | 3330 | 3860 | 5000 | 5800 |
| Number of cylinders / turbocharging | 4 | 4 | 6 | 6 |
| Rated engine power (HP) | 65 | 83 | 90 | 95/100 |
| Fuel tank capacity (L) | 112 | 112 | 170 | 170 |
| Type of transmission system | mech | mech | mech | mech |
| Number of gearbox speeds | 3 | 3 | 3 | 3 |
| Minimum-maximum driving speed (km/h) | 1,9-17,7 | 2,1-20,0 | 2,5-20,9 | 1,2-23,5 |
Advertisement
| Cutting unit/header working width (cm) | 280 | 280 | 310 | 360 |
|---|---|---|---|---|
| Number of straw walkers | 4 | 4 | 4 | 4 |
| Total length (cm) | 826 | 826 | 838 | 860 |
| Total width (cm) | 320 | 320 | – | – |
| Width without cutting unit/header (cm) | – | – | – | – |
| Height without cab (cm) | 314 | 314 | 355 | – |
| Total height with cab (cm) | – | – | – | – |
| Weight without cab (kg) | 4350 | 5500 | – | – |
| Weight with cab (kg) | – | – | – | – |
| Grain tank capacity (hl) | 21 | 21 | 32 | 32 |
| Front wheel size | 12.4/11-28 | 13.6/12-28 | 18.4/15-30 | 18.4/15-30 |
| Rear wheel size | 5.50-16 | 6.00-16 | 10.00-15 | 9.00-16 |
