Technical specification of the Braud 700 Combine Harvester:
Braud 700 Combine Harvester was produced from 1976 to 1985, equipped with a Perkins A6.354 engine with a displacement of 5800 cm³ and 152 HP. It has six cylinders with turbocharging and a hydrostatic drive system, allowing speeds from 0 to 21.2 km/h. The working width of the cutting unit is 370 cm, and it is equipped with four straw walkers. The combine has a fuel tank capacity of 320 liters and a grain tank capacity of 40-42 hectoliters. The dimensions of the combine are 955 cm in length, 410 cm in width, 249 cm in width without the cutting unit, and 373 cm in height without the cab. Its weight is 7150-7500 kg. The front wheel size is 18.4/15-30, and the rear wheels are 11.5/80-15.
Table of contents:
Advertisement
Data sheet for Braud 700, 750, 800 combine harvesters:
| Model | Braud 700 | Braud 750 | Braud 800 |
| Years of production | 1976-85 | 1980-85 | 1980-85 |
| Engine manufacturer | Perkins | Perkins | Iveco |
| Engine model / type | A6.354 | A6.354 | CP3 |
| Engine displacement (cm3) | 5800 | 5800 | 7412 |
| Number of cylinders / turbocharging | 6T | 6T | 6T |
| Engine rated power (hp) | 152 | 152 | 176 |
| Fuel tank capacity (l) | 320 | 320 | 320 |
| Type of drive transmission | hydr | mech | hydr |
| Number of gears (front + rear) | 3 | 3 | 3 |
| Driving speed min-max (km/h) | 0-21,2 | 1,8-20,8 | 0-20 |
Advertisement
| Cutting unit working width (cm) | 370 | 430 | 430 |
| Number of straw walkers | 4 | 5 | 5 |
| Total length (cm) | 955 | – | – |
| Total width (cm) | 410 | – | – |
| Width without cutting attachment (cm) | 249 | 320 | 320 |
| Height without cabin (cm) | 373 | 373 | – |
| Total height with cabin (cm) | – | – | – |
| Weight without cabin (kg) | 7150/7500 | 8300 | 8300 |
| Weight with cabin (kg) | – | – | – |
| Grain tank capacity (hl) | 40/42 | 52 | 52 |
| Front wheel size | 18.4/15-30 | 23.1/18-26 | 23.1/18-26 |
| Rear wheel size | 11.5/80-15 | 11.5/80-15 | 11.5/80-15 |
Advertisement
Add your opinion and share the fuel consumption of the combine Braud 700, 750, 800:

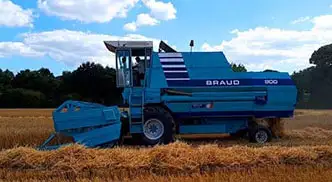

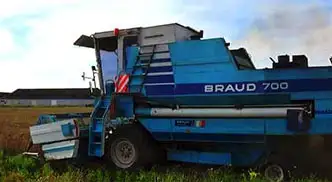

Braud 700, 750, 800 Gallery:
