Case IH CS 58

Case IH CS 48, CS 58, CS 68, CS 75 – specs, opinions & photos

Looking for information about agricultural tractors Case IH CS 48, CS 58, CS 68, CS 75? In this article, you'll find answers to questions such as:

  • How much horsepower does each model have?
  • What is the engine capacity of these models?
  • What is the hydraulic pump output for each one?
  • What is the PTO speed of these tractors?

With a spec sheet presented in table form, comparing the tractors is quick and easy, and user reviews will help you make the right choice.

Table of contents:

Technical specifications of the agricultural tractors Case IH CS 48, CS 58, CS 68, CS 75:

Case IH CS 48
Case IH CS 58
Case IH CS 68
Case IH CS 75

Case IH CS 48

  • Years of production: –
  • Maximum engine power (HP) / at RPM: 48/2250
  • Number of gearbox speeds (forward + reverse): 16+8
  • Maximum speed (km/h): 30/40
  • Fuel tank capacity (L): 73

Case IH CS 58

  • Years of production: –
  • Maximum engine power (HP) / at RPM: 58/2250
  • Number of gearbox speeds (forward + reverse): 16+8
  • Maximum speed (km/h): 30/40
  • Fuel tank capacity (L): 73

Case IH CS 68

  • Years of production: –
  • Maximum engine power (HP) / at RPM: 68/2250
  • Number of gearbox speeds (forward + reverse): 16+8
  • Maximum speed (km/h): 30/40
  • Fuel tank capacity (L): 83

Case IH CS 75

  • Years of production: –
  • Maximum engine power (HP) / at RPM: 75/2300
  • Number of gearbox speeds (forward + reverse): 16+8
  • Maximum speed (km/h): 30/40
  • Fuel tank capacity (L): 83

For details and a comparison of the tractors, see the technical sheet below.

Advertisement


Technical Data Sheet for Case IH CS 48, CS 58, CS 68, CS 75 tractors:

Comparison of technical parameters of agricultural tractors
Model Case IH CS 48 Case IH CS 58 Case IH CS 68 Case IH CS 75
Years of production – – – –
Engine designation/type 903.27 903.27T 301.89 320.81
Number of cylinders / Turbo / Intercooler 3 3T 3T 3T
Engine displacement (cm³) 2700 2700 3117 3298
Piston diameter / Stroke (mm) 95×127 95×127 105×120 108×120
Maximum engine power (HP) / at RPM 48/2250 58/2250 68/2250 75/2300
Torque (Nm) / at RPM 190/1300 223/1400 264/1500 290/1400
Number of gearbox speeds (forward + reverse) 16+8 16+8 16+8 16+8
Number of synchronized gears (forward + reverse) 16+8 16+8 16+8 16+8

Advertisement

Fast gearbox / Power shift – – – –
Reverser type mech mech mech mech
Speed range (km/h) 2,0-40,0 2,0-40,0 1,9-40,0 1,9-40,0
Maximum speed (km/h) 30/40 30/40 30/40 30/40
Hydraulic pump capacity (L/min) 38 38 43 43
Rear three-point hitch (TUV) control type mech mech mech mech
Maximum rear three-point hitch (TUV) lift capacity (kg) 2290 2290 2610 2610
Power take-off (PTO) speed (RPM) 430/540/750/1000 430/540/750/1000 430/540/750/1000 430/540/750/1000
Type of disc brake (dry/wet) – – – –
Brake system control type hydr hydr hydr hydr
Turning radius 2WD (m) 7 7 7,8 –
Turning radius 4WD (m) 8,4 8,4 8,8 8,8

Advertisement

Front tire size 2WD 7,50-16 7,50-18 7,50-18 –
Front tire size 4WD 10,5R20 340/75R20 11,2R24 11,2R24
Rear tire size 2WD 14,9R28 14,9R30 13,6R36 –
Rear tire size 4WD 14,9R28 14,9R30 13,6R36 13,6R30
Total weight 2WD (kg) 2490 2520 2820 –
Total weight 4WD (kg) 2710 2750 2970 2970
Total height with cabin (cm) 234/220 238/224 250/236 250/236
Total length (cm) 348/352 348/352 370/379 379
Total width (cm) 212 212 223 223
Fuel tank capacity (L) 73 73 83 83
Cabin noise level (dB) 80 80 81 81

Advertisement

Fuel consumption and user reviews of tractors Case IH CS 48, CS 58, CS 68, CS 75:

Add your opinion:

Easy work 0.0 l/h
Medium work 0.0 l/h
Hard work 0.0 l/h

Opinions posted:

No opinions.

Average fuel consumption:

Easy - l/h
Medium - l/h
Hard - l/h

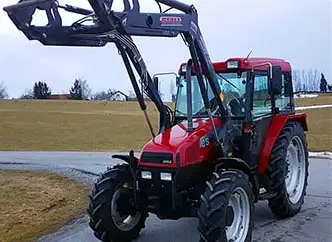

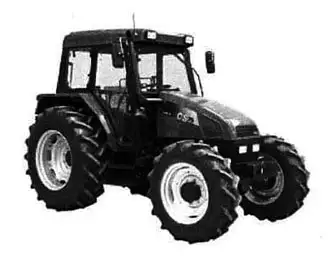

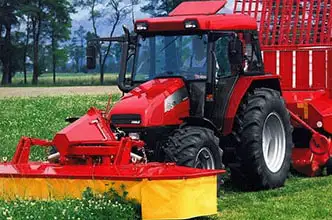

Case IH CS 48, CS 58, CS 68, CS 75 Gallery:
