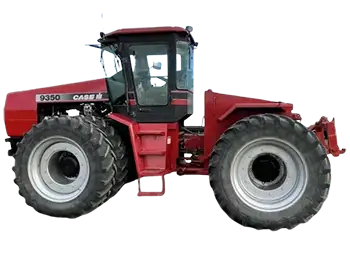

Technical specifications of the agricultural tractor Case IH Steiger 9310/9330/9350/9370/9380/9390:
Advertisement
| Model | Case IH 9310 | Case IH 9330 | Case IH 9350 | Case IH 9370 | Case IH 9380 | Case IH 9390 |
| Years of production | 95-00 | 95-00 | 95-00 | 95-00 | 95-00 | 97-00 |
| Engine model / type | 6TA | 6TA | M11-A310 | N14-A368 | N14-A400 | N14-A400 |
| Number of cylinders / turbocharging | 6TI | 6TI | 6TI | 6TI | 6TI | 6TI |
| Engine displacement (cm3) | 8277 | 8277 | 10824 | 14016 | 14016 | 14016 |
| Piston dimension / stroke (mm) | 114×135,1 | 114×135,1 | 125×147 | 139,7×152,4 | 139,7×152,4 | 139,7×152,4 |
| Maximum engine power (hp) / rpm | 205/2200 | 240/2200 | 310/2100 | 360/2100 | 400/2100 | 425/2100 |
| Torque (Nm) / rpm | 1647/1400 | – | – | – | – | |
| Number of gears (front + rear) | 12+3 | 12+3 | 12+3 | 12+3 | 12+3 | 12+3 |
| Number of synchronized gears (front+rear) | – | – | – | – | – | – |
Advertisement
| Speed-Shift | – | – | – | – | – | – |
| Type of reverse | hydr | hydr | hydr | hydr | hydr | hydr |
| Driving speed (km/h) | 3,3-27,9 | 3,3-27,9 | 3,3-27,9 | 3,5-30,0 | 3,3-27,9 | 3,3-27,9 |
| Max Driving speed (km/h) | – | – | – | – | – | – |
| Hydraulic pump capacity (L/min) | 109 | 109 | 114/102 | 114/102 | 114/102 | 114 |
| 3-Point Hitch control | – | – | – | – | – | – |
| 3-point hitch max load (kg) | 5783 | 5783 | 6350 | 7711 | 7711 | 7711 |
| PTO speed (rpm) | 1000 | 1000 | 1000 | 1000 | 1000 | 540/1000 |
| Disc brake type (dry / wet) | – | – | – | – | – | – |
| Type of control of the braking system | hydr | hydr | hydr | hydr | hydr | hydr |
| Turning radius 2WD (m) | – | – | – | – | – | – |
| Turning radius 4WD (m) | 8,5/7,8 | 8,5/7,8 | 9,38/7,0 | 11,9 | 10,4 | 10,4 |
Advertisement
| Front wheel 2WD | – | – | – | – | – | – |
| Front wheel 4WD | 18,4R38 | 18,4R38 | 20,8R38 | 11″x234″ | 20.8R38 | 20.8R38 |
| Rear wheel 2WD | – | – | – | – | – | – |
| Rear wheel 4WD | 18,4R38 | 18,4R38 | 20,8R38 | 11″x234″ | 20.8R38 | 20.8R38 |
| 2WD total weight (kg) | – | – | – | – | – | – |
| 4WD total weight (kg) | 11121 | 11121 | 12035 | 19845 | 14742 | 14742 |
| Total height with cabin (cm) | 331 | 331 | 363 | 380 | 380 | – |
| Total length (cm) | 614 | 614 | 671 | 660 | 660 | – |
| Total width (cm) | 315/331 | 315/331 | 333/348 | 376 | 366 | 366 |
| Fuel tank capacity (l) | 435 | 435 | 757 | 1022 | 1022 | 1022 |
| Cabin sound level (dB) | 81 | 81 | 81 | 81 | 81 | 81 |
