Technical specifications of the agricultural tractors MB-Trac 65/70:
MB-Trac 65/70
- Years of production: 1972-75
- Maximum engine power (HP) / at RPM: 65/2400
- Number of gearbox speeds (forward + reverse): 16+16
- Maximum speed (km/h): 25
- Fuel tank capacity (L): 120
For details and a comparison of the tractors, see the technical sheet below.
Advertisement
Technical Data Sheet for MB-Trac 65/70 agricultural tractors:
| Model | MB-Trac 65/70 |
|---|---|
| Years of production | 1972-75 |
| Engine designation/type | OM 314 |
| Number of cylinders / Turbo / Intercooler | 4 |
| Engine displacement (cm3) | 3782 |
| Piston diameter / Stroke (mm) | 97×128 |
| Maximum engine power (HP) / at RPM | 65/2400 |
| Torque (Nm) / at RPM | 220/1600 |
| Number of gearbox speeds (forward + reverse) | 16+16 |
| Number of synchronized gears (forward + reverse) | 16+16 |
Advertisement
| Fast gearbox / Power shift | – |
|---|---|
| Reverser type | – |
| Speed range (km/h) | 1,2-25,0 |
| Maximum speed (km/h) | 25 |
| Hydraulic pump capacity (L/min) | 40 |
| Rear three-point hitch (TUV) control type | mech |
| Maximum rear three-point hitch (TUV) lift capacity (kg) | 3000 |
| Power take-off (PTO) speed (RPM) | 540/1000 |
| Type of disc brake (dry/wet) | wet |
| Brake system control type | hydr |
| Turning radius 2WD (m) | – |
| Turning radius 4WD (m) | 10,6 |
Advertisement
| Front tire size 2WD | – |
|---|---|
| Front tire size 4WD | 14,9-24 |
| Rear tire size 2WD | – |
| Rear tire size 4WD | 14,9-24 |
| Total weight 2WD (kg) | – |
| Total weight 4WD (kg) | 3270 |
| Total height with cabin (cm) | 265 |
| Total length (cm) | 449 |
| Wheelbase (cm) | 240 |
| Fuel tank capacity (L) | 120 |
| Cabin noise level (dB) | 88 |
Fuel consumption and user reviews of tractors MB-Trac 65/70:

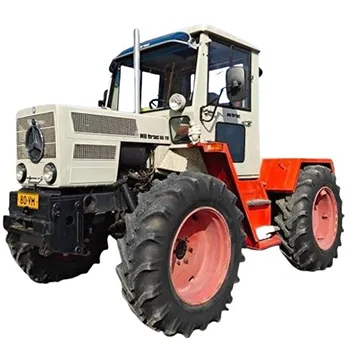

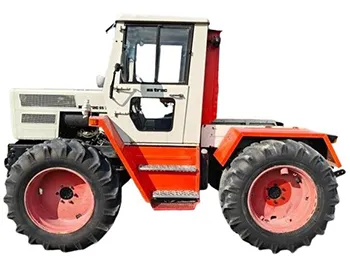

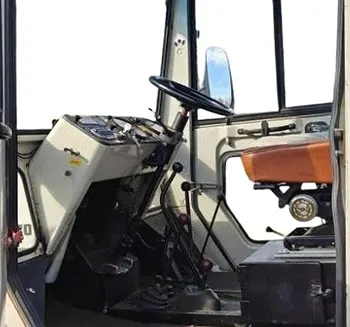

MB-Trac 65/70 Gallery:
