Technical specifications of the agricultural tractors Renault N73, N72, N71, N70:
Renault N73
- Years of production: 60-64
- Maximum engine power (HP) / at RPM: 20/2000
- Number of gearbox speeds (forward + reverse): 6+1
- Maximum speed (km/h): –
- Fuel tank capacity (L): 30
Renault N72
- Years of production: 60-64
- Maximum engine power (HP) / at RPM: 25/2000
- Number of gearbox speeds (forward + reverse): 6+1
- Maximum speed (km/h): –
- Fuel tank capacity (L): 40
Renault N71
- Years of production: 60-63
- Maximum engine power (HP) / at RPM: 35/2000
- Number of gearbox speeds (forward + reverse): 6+1
- Maximum speed (km/h): –
- Fuel tank capacity (L): 40
Renault N70
- Years of production: 60-64
- Maximum engine power (HP) / at RPM: 40/2000
- Number of gearbox speeds (forward + reverse): 6+1
- Maximum speed (km/h): –
- Fuel tank capacity (L): 40
For details and a comparison of the tractors, see the technical sheet below.
Advertisement
Technical Data Sheet for Renault N73, N72, N71, N70 Agricultural tractors:
| Model | Renault N73 | Renault N72 | Renault N71 | Renault N70 |
|---|---|---|---|---|
| Years of production | 60-64 | 60-64 | 60-63 | 60-64 |
| Engine designation/type | MWM AKD 311 Z | MWM AKD 112 Z | Perkins P3 TA/4924 | MWM AKD 112 D |
| Number of cylinders / Turbo / Intercooler | 2 | 2 | 3 | 3 |
| Engine displacement (cm³) | 1400 | 1810 | 2365 | 2715 |
| Piston diameter / Stroke (mm) | 90×110 | 98×120 | 88,9×127 | 98×120 |
| Maximum engine power (HP) / at RPM | 20/2000 | 25/2000 | 35/2000 | 40/2000 |
| Torque (Nm) / at RPM | – | – | – | – |
| Number of gearbox speeds (forward + reverse) | 6+1 | 6+1 | 6+1 | 6+1 |
| Number of synchronized gears (forward + reverse) | 2 | 2 | 2 | – |
Advertisement
| Fast gearbox / Power shift | – | – | – | – |
|---|---|---|---|---|
| Reverser type | – | – | – | – |
| Speed range (km/h) | 1,7-21,5 | 3,4-23,0 | 3,4-23,0 | 3,4-23,0 |
| Maximum speed (km/h) | – | – | – | – |
| Hydraulic pump capacity (L/min) | 10 | 17 | 17 | 17 |
| Rear three-point hitch (TUV) control type | mech | mech | mech | mech |
| Maximum rear three-point hitch (TUV) lift capacity (kg) | 800 | 1300 | 1300 | 1300 |
| Power take-off (PTO) speed (RPM) | 540 | 540 | 540 | 540 |
| Type of disc brake (dry/wet) | – | – | – | – |
| Brake system control type | mech | mech | mech | mech |
| Turning radius 2WD (m) | 7,3 | – | – | – |
| Turning radius 4WD (m) | – | – | – | – |
Advertisement
| Front tire size 2WD | 4,00-15 | 5,50-16 | 5,50-16 | 6,00-16 |
|---|---|---|---|---|
| Front tire size 4WD | – | – | – | – |
| Rear tire size 2WD | 10,00-24 | 11,2-28 | 12,4-28 | 12,4-28 |
| Rear tire size 4WD | – | – | – | – |
| Total weight 2WD (kg) | 1045 | 1480 | 1485 | 1623 |
| Total weight 4WD (kg) | – | – | – | – |
| Total height with cabin (cm) | 148 | 154 | 154 | 156 |
| Total length (cm) | 272 | 300 | 313 | 313 |
| Total width (cm) | 156 | 172 | 175 | 185 |
| Fuel tank capacity (L) | 30 | 40 | 40 | 40 |
| Cabin noise level (dB) | – | – | – | – |
Fuel consumption and user reviews of tractors Renault N73, N72, N71, N70:

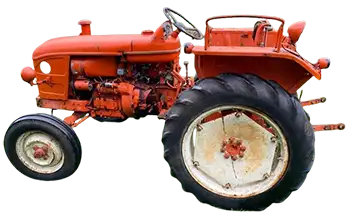

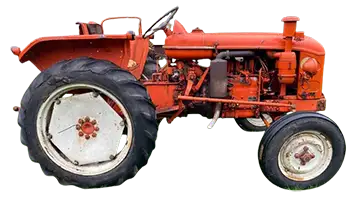

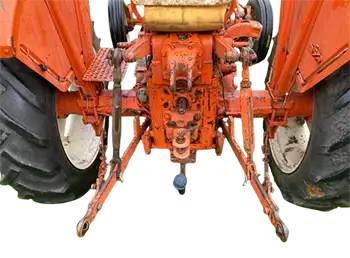

Renault N73, N72, N71, N70 Gallery:
