Technical specifications of the agricultural tractors Renault Super 2D, Super 3D, Super 4D, Super 5D, Super 6D, Super 7D:
Renault Super 2D
- Years of production: 65-69
- Maximum engine power (HP) / at RPM: 26/2000
- Number of gearbox speeds (forward + reverse): 6+1
- Maximum speed (km/h): –
- Fuel tank capacity (L): 70
Renault Super 3D
- Years of production: 65-68
- Maximum engine power (HP) / at RPM: 24/2000
- Number of gearbox speeds (forward + reverse): 6+1
- Maximum speed (km/h): –
- Fuel tank capacity (L): 40
Renault Super 4D
- Years of production: 65-69
- Maximum engine power (HP) / at RPM: 30/2000
- Number of gearbox speeds (forward + reverse): 10+2
- Maximum speed (km/h): –
- Fuel tank capacity (L): 40
Renault Super 5D
- Years of production: 65-67
- Maximum engine power (HP) / at RPM: 35/2000
- Number of gearbox speeds (forward + reverse): 10+2
- Maximum speed (km/h): –
- Fuel tank capacity (L): 40
Renault Super 6D
- Years of production: 65-68
- Maximum engine power (HP) / at RPM: 42/2000
- Number of gearbox speeds (forward + reverse): 10+2
- Maximum speed (km/h): –
- Fuel tank capacity (L): 40
Renault Super 7D
- Years of production: 65-69
- Maximum engine power (HP) / at RPM: 46/2000
- Number of gearbox speeds (forward + reverse): 10+2
- Maximum speed (km/h): –
- Fuel tank capacity (L): 40
For details and a comparison of the tractors, see the technical sheet below.
Advertisement
Technical Data Sheet for Renault Super 2D, Super 3D, Super 4D, Super 5D, Super 6D, Super 7D Agricultural tractors:
| Model | Renault Super 2D | Renault Super 3D | Renault Super 4D | Renault Super 5D | Renault Super 6D | Renault Super 7D |
|---|---|---|---|---|---|---|
| Years of production | 65-69 | 65-68 | 65-69 | 65-67 | 65-68 | 65-69 |
| Engine designation/type | Indenor XDP 85 | MWM D322-2 | 710-30 | 709-30 | MWM D322-3 | Perkins D3-152 |
| Number of cylinders / Turbo / Intercooler | 4 | 2 | 3 | 3 | 3 | 3 |
| Engine displacement (cm³) | 1816 | 1810 | 2038 | 2263 | 2715 | 2502 |
| Piston diameter / Stroke (mm) | 85×80 | 98×120 | 93×100 | 98×100 | 98×120 | 91,44×127 |
| Maximum engine power (HP) / at RPM | 26/2000 | 24/2000 | 30/2000 | 35/2000 | 42/2000 | 46/2000 |
| Torque (Nm) / at RPM | 166/1500 | – | – | – | – | – |
| Number of gearbox speeds (forward + reverse) | 6+1 | 6+1 | 10+2 | 10+2 | 10+2 | 10+2 |
| Number of synchronized gears (forward + reverse) | 2 | 2 | 2 | 2 | 2 | 2 |
Advertisement
| Fast gearbox / Power shift | – | – | – | – | – | – |
|---|---|---|---|---|---|---|
| Reverser type | – | – | – | – | – | – |
| Speed range (km/h) | 3,1-21,3 | 3,1-21,3 | 0,8-20,0 | 0,9-22,2 | 0,9-22,2 | 0,9-22,2 |
| Maximum speed (km/h) | – | – | – | – | – | – |
| Hydraulic pump capacity (L/min) | 18 | 18 | 18 | 18 | 18 | 18 |
| Rear three-point hitch (TUV) control type | mech | mech | mech | mech | mech | mech |
| Maximum rear three-point hitch (TUV) lift capacity (kg) | 1350 | 1350 | 1350 | 1350 | 1350 | 1350 |
| Power take-off (PTO) speed (RPM) | 540 | 540 | 540 | 540 | 540 | 540 |
| Type of disc brake (dry/wet) | – | – | – | – | – | – |
| Brake system control type | mech | mech | mech | mech | mech | mech |
| Turning radius 2WD (m) | 5,8 | 5,8 | 5,8 | 5,8 | 5,8 | – |
| Turning radius 4WD (m) | – | – | – | – | – | – |
Advertisement
| Front tire size 2WD | 5,50-16 | 5,50-16 | 6,00-16 | 6,00-16 | 6,00-16 | 6,00-16 |
|---|---|---|---|---|---|---|
| Front tire size 4WD | – | – | – | – | – | – |
| Rear tire size 2WD | 11,2-28 | 11,2-28 | 12,4-28 | 12,4-28 | 12,4-28 | 12,4-28 |
| Rear tire size 4WD | – | – | – | – | – | – |
| Total weight 2WD (kg) | 1770 | 1800 | 1930 | 2090 | – | – |
| Total weight 4WD (kg) | – | – | – | – | – | – |
| Total height with cabin (cm) | 157 | 157 | 157 | 226 | 229 | 229 |
| Total length (cm) | 317 | 317 | 328 | 328 | 330 | 330 |
| Total width (cm) | 173 | 173 | 187 | 187 | 187 | 187 |
| Fuel tank capacity (L) | 70 | 40 | 40 | 40 | 40 | 40 |
| Cabin noise level (dB) | – | – | – | – | – | – |
Fuel consumption and user reviews of tractors Renault Super 2D, Super 3D, Super 4D, Super 5D, Super 6D, Super 7D:

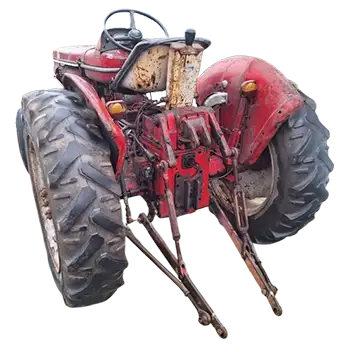

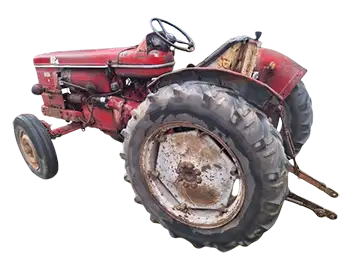

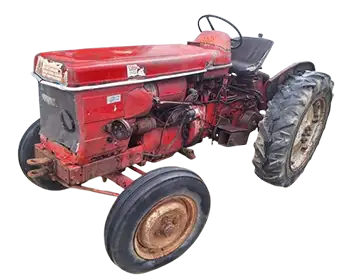

Renault Super 2D, Super 3D, Super 4D, Super 5D, Super 6D, Super 7D Gallery:
