Zetor Major 3320

Zetor Major 3320, 3340, 5320, 5340, 6320, 6340, 7320, 7340 – specs, opinions & photos

Looking for information about agricultural tractors Zetor Major 3320, 3340, 5320, 5340, 6320, 6340, 7320, 7340? In this article, you'll find answers to questions such as:

  • How much horsepower does each model have?
  • What is the engine capacity of these models?
  • What is the hydraulic pump output for each one?
  • What is the PTO speed of these tractors?

With a spec sheet presented in table form, comparing the tractors is quick and easy, and user reviews will help you make the right choice.

Table of contents:

Technical specifications of the agricultural tractors Zetor Major 3320, 3340, 5320, 5340, 6320, 6340, 7320, 7340:

Zetor Major 3320/3340
Zetor Major 5320/5340
Zetor Major 6320/6340
Zetor Major 7320/7340

Zetor Major 3320/3340

  • Years of production: –
  • Maximum engine power (HP) / at RPM: 45/2200
  • Number of gearbox speeds (forward + reverse): –
  • Maximum speed (km/h): 30/36
  • Fuel tank capacity (L): 80/85

Zetor Major 5320/5340

  • Years of production: –
  • Maximum engine power (HP) / at RPM: 63/2200
  • Number of gearbox speeds (forward + reverse): –
  • Maximum speed (km/h): 30/36
  • Fuel tank capacity (L): 80/85

Zetor Major 6320/6340

  • Years of production: –
  • Maximum engine power (HP) / at RPM: 68/2200
  • Number of gearbox speeds (forward + reverse): –
  • Maximum speed (km/h): 30/36
  • Fuel tank capacity (L): 80/85

Zetor Major 7320/7340

  • Years of production: –
  • Maximum engine power (HP) / at RPM: 78/2200
  • Number of gearbox speeds (forward + reverse): –
  • Maximum speed (km/h): 30/36
  • Fuel tank capacity (L): 80/85

For details and a comparison of the tractors, see the technical sheet below.

Advertisement


Technical Data Sheet for Zetor Major 3320, 3340, 5320, 5340, 6320, 6340, 7320, 7340 agricultural tractors:

Comparison of technical parameters of agricultural tractors
Model Zetor Major 3320/3340 Zetor Major 5320/5340 Zetor Major 6320/6340 Zetor Major 7320/7340
Years of production – – – –
Engine designation/type Z5201 Z7201 Z7701 Z7301
Number of cylinders / Turbo / Intercooler 3 4 4 4T
Engine displacement (cm³) 2696 3595 3922 3922
Piston diameter / Stroke (mm) 102×110 102×110 102×120 102×120
Maximum engine power (HP) / at RPM 45/2200 63/2200 68/2200 78/2200
Torque (Nm) / at RPM – – – –
Number of gearbox speeds (forward + reverse) – – – –
Number of synchronized gears (forward + reverse) 10+2 10+2 10+2 10+2

Advertisement

Fast gearbox / Power shift 8 8 8 8
Reverser type – – – –
Speed range (km/h) 2,0-35,8 2,0-35,8 2,0-35,8 2,0-35,8
Maximum speed (km/h) 30/36 30/36 30/36 30/36
Hydraulic pump capacity (L/min) 40 40 40 40
Rear three-point hitch (TUV) control type mech mech mech mech
Maximum rear three-point hitch (TUV) lift capacity (kg) 1900/2700 2700/3450 2700/3450 2700/3450
Power take-off (PTO) speed (RPM) 540 540 540 540
Type of disc brake (dry/wet) – – – –
Brake system control type – – – –
Turning radius 2WD (m) 7,4 7,6 7,6 7,6
Turning radius 4WD (m) 8 8,9 8,9 8,9

Advertisement

Front tire size 2WD 6,50-16 7,50-20 7,50-20 7,50-20
Front tire size 4WD 9,5-24 11,2-24 11,2-24 12,4-24
Rear tire size 2WD 14,9-28 16,9-30 16,9-30 16,9-34
Rear tire size 4WD 14,9-28 16,9-30 16,9-30 16,9-34
Total weight 2WD (kg) 2680 2890 2895 2895
Total weight 4WD (kg) 3080 3345 3365 3440
Total height with cabin (cm) 264 264 264 269
Total length (cm) 363 377 377 377
Total width (cm) 212/214 226/222 226/222 226/222
Fuel tank capacity (L) 80/85 80/85 80/85 80/85
Cabin noise level (dB) – – – –

Fuel consumption and user reviews of tractors Zetor Major 3320, 3340, 5320, 5340, 6320, 6340, 7320, 7340:

Add your opinion:

Easy work 0.0 l/h
Medium work 0.0 l/h
Hard work 0.0 l/h

Opinions posted:

No opinions.

Average fuel consumption:

Easy - l/h
Medium - l/h
Hard - l/h

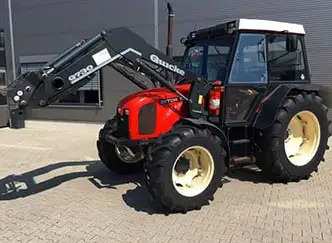

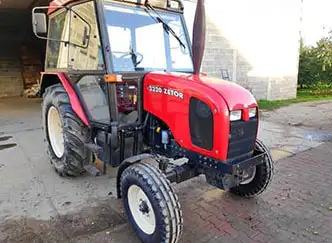

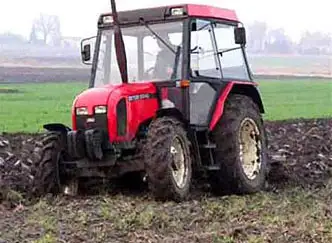

Zetor Major 3320, 3340, 5320, 5340, 6320, 6340, 7320, 7340 Gallery:
