Technical Specifications of Sampo 500 Combine Harvester:
Sampo 500 Combine Harvester was produced between 1982 and 1985. It was equipped with a Valmet 311 CL engine with a capacity of 3300 cm³ and 72 HP. The engine has three cylinders. The combine harvester has a mechanical gearbox with three gears, allowing speeds from 1.5 to 20 km/h. The cutting unit has a working width of 258 cm, and there are four straw walkers inside the combine. Its dimensions are 740 cm in length, 295 cm in width, and 290 cm in height without the cab. The overall height with the cab is 328 cm. The weight without the cab is 3750 kg, and with the cab, it is 3950 kg. The grain tank has a capacity of 21 hectoliters. The front wheels measure 16.9-26, and the rear wheels are 11.5-15. The fuel tank capacity is 100 liters.
Advertisement
Data sheet for Sampo 500, 600, 650 combine harvesters:
| Model | Sampo 500 | Sampo 600 | Sampo 650 |
| Years of production | 1982-85 | 1979-85 | 1979-85 |
| Engine manufacturer | Valmet | Valmet | Valmet |
| Engine model / type | 311 CL | 411 CL | 411 CL |
| Engine displacement (cm3) | 3300 | 4400 | 4400 |
| Number of cylinders / turbocharging | 3 | 4 | 4 |
| Engine rated power (hp) | 72 | 84 | 84 |
| Fuel tank capacity (l) | 100 | 140 | 140 |
| Type of drive transmission | mech | mech | mech |
| Number of gears (front + rear) | 3 | 3 | 3 |
| Driving speed min-max (km/h) | 1,5-20 | 1,5-22 | 1,5-22 |
Advertisement
| Cutting unit working width (cm) | 258 | 290 | 335 |
| Number of straw walkers | 4 | 4 | 4 |
| Total length (cm) | 740 | 740 | 740 |
| Total width (cm) | 295 | 320 | 370 |
| Width without cutting attachment (cm) | – | – | – |
| Height without cabin (cm) | 290 | 288 | 288 |
| Total height with cabin (cm) | 328 | 354 | 354 |
| Weight without cabin (kg) | 3750 | 4300 | 4400 |
| Weight with cabin (kg) | 3950 | 4500 | 4600 |
| Grain tank capacity (hl) | 21 | 25 | 25 |
| Front wheel size | 16,9-26 | 18,4-26 | 18,4-26 |
| Rear wheel size | 11,5-15 | 11,5-15 | 11,5-15 |
Advertisement
Add an opinion about Sampo 500/600/650:

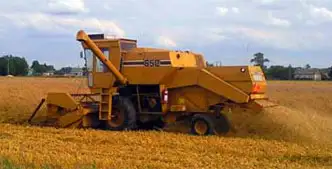

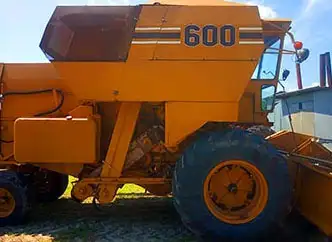

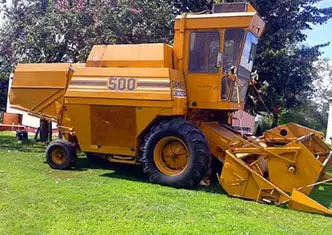

Sampo 500, 600, 650 Gallery:
