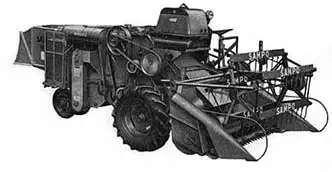

Technical Specifications of Sampo 657 LP Combine Harvester:
Sampo 657 LP Combine Harvester was produced between 1956 and 1967. It was equipped with a VW engine with a capacity of 1192 cm³ and 29 HP. The engine has four cylinders. The combine harvester has a mechanical gearbox with two gears, allowing speeds from 1.8 to 13.0 km/h. The cutting unit has a working width of 182 cm, and there is one straw walker inside the combine. Its dimensions are 600 cm in length, 231 cm in width, and 230 cm in height without the cab. The weight without the cab is 2000 kg. The grain tank has a capacity of 7 hectoliters. The front wheels measure 10.00-24, and the rear wheels are 6.00-12. The fuel tank capacity is 90 liters.
Advertisement
Data sheet for Sampo 657 LP, 792 LP, 892 LP combine harvesters:
| Model | Sampo 657 LP | Sampo 792 LP | Sampo 892 LP |
| Years of production | 1956-67 | 1960-65 | 1964-67 |
| Engine manufacturer | VW | Perkins | Perkins |
| Engine model / type | – | 4.99/4.107 | 4.107 |
| Engine displacement (cm3) | 1192 | 1620/1760 | 1760 |
| Number of cylinders / turbocharging | 4 | 4 | 4 |
| Engine rated power (hp) | 29 | 39/41 | 41 |
| Fuel tank capacity (l) | 90 | 90 | – |
| Type of drive transmission | mech | mech | mech |
| Number of gears (front + rear) | 2 | 3 | 3 |
| Driving speed min-max (km/h) | 1,8-13,0 | 1,3-17,0 | 1,3-17,0 |
Advertisement
| Cutting unit working width (cm) | 182 | 217 | 244 |
| Number of straw walkers | 1 | 4 | 4 |
| Total length (cm) | 600 | 678 | 740 |
| Total width (cm) | 231 | 278 | 285 |
| Width without cutting attachment (cm) | – | – | – |
| Height without cabin (cm) | 230 | 290 | 290 |
| Total height with cabin (cm) | – | – | – |
| Weight without cabin (kg) | 2000 | 2750 | 3150 |
| Weight with cabin (kg) | – | – | – |
| Grain tank capacity (hl) | 7 | 15 | 15 |
| Front wheel size | 10,00-24 | 14,9-24 | 14,9-24 |
| Rear wheel size | 6,00-12 | 7,00-12 | 10,00-12 |
