Case IH JX55

Case IH JX55, JX65, JX75, JX85, JX95 – specs, opinions & photos

Looking for information about agricultural tractors Case IH JX55, JX65, JX75, JX85, JX95? In this article, you'll find answers to questions such as:

  • How much horsepower does each model have?
  • What is the engine capacity of these models?
  • What is the hydraulic pump output for each one?
  • What is the PTO speed of these tractors?

With a spec sheet presented in table form, comparing the tractors is quick and easy, and user reviews will help you make the right choice.

Table of contents:

Technical specifications of the agricultural tractors Case IH JX55, JX65, JX75, JX85, JX95:

Case IH JX55
Case IH JX65
Case IH JX75
Case IH JX85
Case IH JX95

Case IH JX55

  • Years of production: –
  • Maximum engine power (HP) / at RPM: 58/2500
  • Number of gearbox speeds (forward + reverse): 12+12
  • Maximum speed (km/h): 30/40
  • Fuel tank capacity (L): 92

Case IH JX65

  • Years of production: –
  • Maximum engine power (HP) / at RPM: 64/2500
  • Number of gearbox speeds (forward + reverse): 12+12
  • Maximum speed (km/h): 30/40
  • Fuel tank capacity (L): 92

Case IH JX75

  • Years of production: –
  • Maximum engine power (HP) / at RPM: 74/2500
  • Number of gearbox speeds (forward + reverse): 12+12
  • Maximum speed (km/h): 30/40
  • Fuel tank capacity (L): 92

Case IH JX85

  • Years of production: –
  • Maximum engine power (HP) / at RPM: 85/2500
  • Number of gearbox speeds (forward + reverse): 12+12
  • Maximum speed (km/h): 30/40
  • Fuel tank capacity (L): 92

Case IH JX95

  • Years of production: –
  • Maximum engine power (HP) / at RPM: 98/2500
  • Number of gearbox speeds (forward + reverse): 12+12
  • Maximum speed (km/h): 30/40
  • Fuel tank capacity (L): 92

For details and a comparison of the tractors, see the technical sheet below.

Advertisement


Technical Data Sheet for Case IH JX 65, JX 55, JX 75, JX 85, JX 95 tractors:

Comparison of technical parameters of agricultural tractors
Model Case IH JX55 Case IH JX65 Case IH JX75 Case IH JX85 Case IH JX95
Years of production – – – – –
Engine designation/type 8035.06 8035.05 8045.06 8045.05 8045.25
Number of cylinders / Turbo / Intercooler 3 3 4 4 4T
Engine displacement (cm³) 2710 2930 3613 3908 3908
Piston diameter / Stroke (mm) 100×115 100×115 100×115 104×115 104×115
Maximum engine power (HP) / at RPM 58/2500 64/2500 74/2500 85/2500 98/2500
Torque (Nm) / at RPM 185/1500 198/1500 250/1500 268/1500 340/1500
Number of gearbox speeds (forward + reverse) 12+12 12+12 12+12 12+12 12+12
Number of synchronized gears (forward + reverse) 12+12 12+12 12+12 12+12 12+12

Advertisement

Fast gearbox / Power shift – – – – –
Reverser type mech mech mech mech mech
Speed range (km/h) 2,2-36,6 2,2-36,6 2,2-36,6 2,2-36,6 2,2-36,6
Maximum speed (km/h) 30/40 30/40 30/40 30/40 30/40
Hydraulic pump capacity (L/min) 44,5 44,5 44,5 44,5 44,5
Rear three-point hitch (TUV) control type mech mech mech mech mech
Maximum rear three-point hitch (TUV) lift capacity (kg) 3565 3565 3565 3565 3565
Power take-off (PTO) speed (RPM) 540/750 540/750 540/750 540/750 540/750
Type of disc brake (dry/wet) – – – – –
Brake system control type hydr hydr hydr hydr hydr
Turning radius 2WD (m) – – – – –
Turning radius 4WD (m) 8,4 8,4 8,4 8,4 8,4

Advertisement

Front tire size 2WD – – – – –
Front tire size 4WD 9,5R24 11,2R24 11,2R24 13,6R24 13,6R24
Rear tire size 2WD – – – – –
Rear tire size 4WD 14,9R30 16,9R30 16,9R30 16,9R34 16,9R34
Total weight 2WD (kg) – – – – –
Total weight 4WD (kg) 3370 3400 3600 3600 3770
Total height with cabin (cm) 255 255 255 255 255
Total length (cm) 393 393 411 411 411
Total width (cm) 211 211 233 233 233
Fuel tank capacity (L) 92 92 92 92 92
Cabin noise level (dB) 84 84 84 84 84

Advertisement

Fuel consumption and user reviews of tractors Case IH JX55, JX65, JX75, JX85, JX95:

Add your opinion:

Easy work 0.0 l/h
Medium work 0.0 l/h
Hard work 0.0 l/h

Opinions posted:

No opinions.

Average fuel consumption:

Easy - l/h
Medium - l/h
Hard - l/h

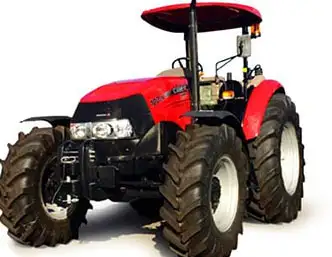

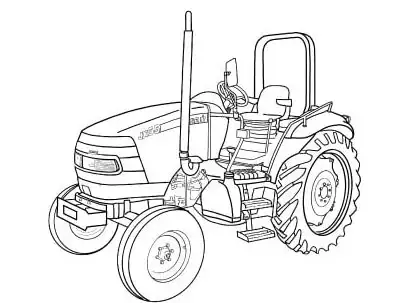

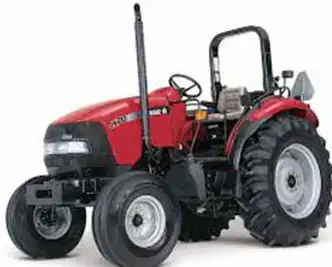

Case IH JX 65, JX 55, JX 75, JX 85, JX 95 Gallery:
