Technical specifications of the Fendt 9470 X Combine Harvester:
Fendt 9470 X Combine Harvester was produced from 2010 to 2013. It is equipped with an Agco Power 98 engine with a capacity of 9800 cm³ and a power output of 510 HP. The engine has seven cylinders with turbocharging and an intercooler. The combine features a hydrostatic transmission with four gears, allowing speeds from 0 to 25 km/h. The cutting unit has a working width of 770 cm. The dimensions of the combine are 827 cm in length, 963 cm in width, and 380 cm in width without the cutting unit. The total height with the cab is 400 cm. The grain tank has a capacity of 105 hectoliters (95 hectoliters standard). The front wheels are sized 800/65R32, and the rear wheels are 500/70-24. The fuel tank has a capacity of 750 liters with the AB103 additive.
Advertisement
Data sheet for Fendt 9490 X, 9470 X combine harvesters:
Model | Fendt 9470 X | Fendt 9490 X |
Years of production | 2010-13 | 2013- |
Engine manufacturer | Agco Power | Agco Power |
Engine model / type | 98 | 98 |
Engine displacement (cm3) | 9800 | 9800 |
Number of cylinders / turbocharging | 7TI | 7TI |
Engine rated power (hp) | 510 | 497 |
Fuel tank capacity (l) | 750+AB103 | 1000+AB120 |
Type of drive transmission | hydr | hydr |
Number of gears (front + rear) | 4 | 4 |
Driving speed min-max (km/h) | 0-25 | 0-25 |
Advertisement
Cutting unit working width (cm) | 770 | 770 |
Number of straw walkers | – | – |
Total length (cm) | 827 | 995 |
Total width (cm) | 963 | 963 |
Width without cutting attachment (cm) | 380 | 380 |
Height without cabin (cm) | – | – |
Total height with cabin (cm) | 400 | 400 |
Weight without cabin (kg) | – | – |
Weight with cabin (kg) | – | – |
Grain tank capacity (hl) | 105 (95) | 105 (95) |
Front wheel size | 800/65R32 | 800/65R32 |
Rear wheel size | 500/70-24 | 500/70-24 |
Advertisement
Add your opinion and share the fuel consumption of the combine Fendt 9470 X, 9490 X:

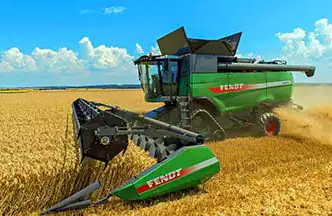

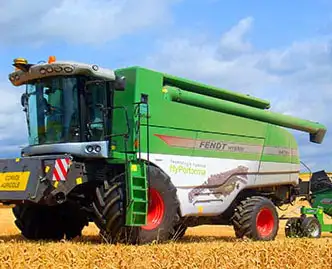

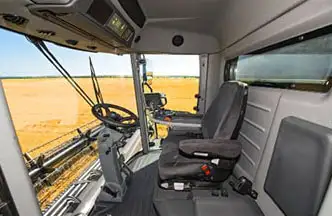

Fendt 9470 X, 9490 X Gallery:
