Deutz Fahr 5080 G LD

Deutz Fahr 5080 G LD, 5090 G LD, 5100 G LD, 5090 G MD, 5090.4 G MD – specs, opinions & photos

Looking for information about agricultural tractors Deutz Fahr 5080 G LD, 5090 G LD, 5100 G LD, 5090 G MD, 5090.4 G MD? In this article, you'll find answers to questions such as:

  • How much horsepower does each model have?
  • What is the engine capacity of these models?
  • What is the hydraulic pump output for each one?
  • What is the PTO speed of these tractors?

With a spec sheet presented in table form, comparing the tractors is quick and easy, and user reviews will help you make the right choice.

Table of contents:

Technical specifications of the agricultural tractors Deutz Fahr 5080 G LD, 5090 G LD, 5100 G LD, 5090 G MD, 5090.4 G MD:

Deutz Fahr 5080 G LD
Deutz Fahr 5090 G LD
Deutz Fahr 5100 G LD
Deutz Fahr 5090 G MD
Deutz Fahr 5090.4 G MD

Deutz Fahr 5080 G LD

  • Years of production: 2014-2017
  • Maximum engine power (HP) / at RPM: 75/2200
  • Number of gearbox speeds (forward + reverse): 8+8/40+40
  • Maximum speed (km/h): 40
  • Fuel tank capacity (L): 135

Deutz Fahr 5090 G LD

  • Years of production: 2014-2017
  • Maximum engine power (HP) / at RPM: 84/2200
  • Number of gearbox speeds (forward + reverse): 8+8/40+40
  • Maximum speed (km/h): 40
  • Fuel tank capacity (L): 135

Deutz Fahr 5100 G LD

  • Years of production: 2014-2017
  • Maximum engine power (HP) / at RPM: 92/2200
  • Number of gearbox speeds (forward + reverse): 8+8/40+40
  • Maximum speed (km/h): 40
  • Fuel tank capacity (L): 135

Deutz Fahr 5090 G MD

  • Years of production: 2014-2017
  • Maximum engine power (HP) / at RPM: 84/2200
  • Number of gearbox speeds (forward + reverse): 8+8/40+40
  • Maximum speed (km/h): 40
  • Fuel tank capacity (L): 135

Deutz Fahr 5090.4 G MD

  • Years of production: 2014-2017
  • Maximum engine power (HP) / at RPM: 84/2200
  • Number of gearbox speeds (forward + reverse): 8+8/40+40
  • Maximum speed (km/h): 40
  • Fuel tank capacity (L): 135

For details and a comparison of the tractors, see the technical sheet below.

Advertisement


Technical Data Sheet for Deutz Fahr 5080 G LD, 5090 G LD, 5100 G LD, 5090 G MD, 5090.4 G MD tractors:

Comparison of technical parameters of agricultural tractors
Model Deutz Fahr 5080 G LD Deutz Fahr 5090 G LD Deutz Fahr 5100 G LD Deutz Fahr 5090 G MD Deutz Fahr 5090.4 G MD
Years of production 2014-2017 2014-2017 2014-2017 2014-2017 2014-2017
Engine designation/type FARMotion FARMotion FARMotion FARMotion FARMotion
Number of cylinders / Turbo / Intercooler 3TI 3TI 3TI 3TI 4TI
Engine displacement (cm³) 2887 2887 2887 2887 3849
Piston diameter / Stroke (mm) 103×115,5 103×115,5 103×115,5 103×115,5 103×115,5
Maximum engine power (HP) / at RPM 75/2200 84/2200 92/2200 84/2200 84/2200
Torque (Nm) / at RPM 342/1600 354/1600 369/1600 354/1600 354/1600
Number of gearbox speeds (forward + reverse) 8+8/40+40 8+8/40+40 8+8/40+40 8+8/40+40 8+8/40+40
Number of synchronized gears (forward + reverse) 8+8/40+40 8+8/40+40 8+8/40+40 8+8/40+40 8+8/40+40

Advertisement

Fast gearbox / Power shift – – – – –
Reverser type mech/hydr mech/hydr mech/hydr mech/hydr mech/hydr
Speed range (km/h) 0,2-40,0 0,2-40,0 0,2-40,0 0,2-40,0 0,2-40,0
Maximum speed (km/h) 40 40 40 40 40
Hydraulic pump capacity (L/min) 55 (60) 55 (60) 55 (60) 55 (60) 55 (60)
Rear three-point hitch (TUV) control type ehr ehr ehr ehr ehr
Maximum rear three-point hitch (TUV) lift capacity (kg) 3500 3500 3500 3600 3600
Power take-off (PTO) speed (RPM) 540 540 540 540 540
Type of disc brake (dry/wet) – – – – –
Brake system control type – – – – –
Turning radius 2WD (m) – – – – –
Turning radius 4WD (m) 7,74 7,74 7,74 7,74 7,74

Advertisement

Front tire size 2WD – – – – –
Front tire size 4WD 320/70R20 320/70R20 320/70R20 13.6R24 13.6R24
Rear tire size 2WD – – – – –
Rear tire size 4WD 420/70R30 420/70R30 420/70R30 16.9R34 16.9R34
Total weight 2WD (kg) – – – – –
Total weight 4WD (kg) 3600 3600 3600 3750 3900
Total height with cabin (cm) 260 260 260 270 270
Total length (cm) 410 410 410 410 431
Total width (cm) 226/230 226/230 226/230 230 240
Fuel tank capacity (L) 135 135 135 135 135
Cabin noise level (dB) 75 75 75 75 75

Fuel consumption and user reviews of tractors Deutz Fahr 5080 G LD, 5090 G LD, 5100 G LD, 5090 G MD, 5090.4 G MD:

Add your opinion:

Easy work 0.0 l/h
Medium work 0.0 l/h
Hard work 0.0 l/h

Opinions posted:

No opinions.

Average fuel consumption:

Easy - l/h
Medium - l/h
Hard - l/h

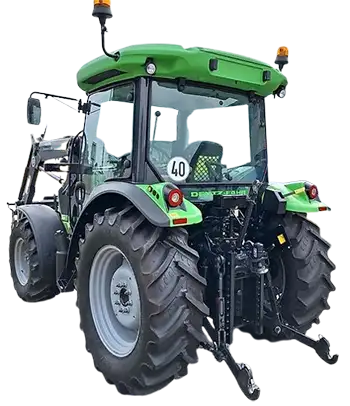

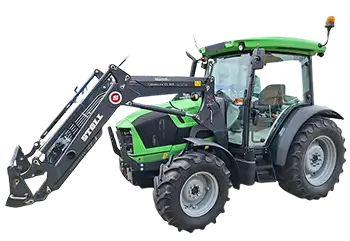

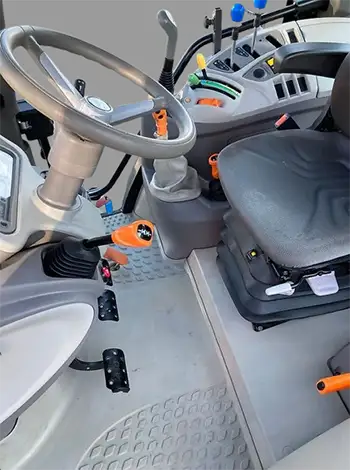

Deutz Fahr 5080 G LD, 5090 G LD, 5100 G LD, 5090 G MD, 5090.4 G MD Gallery:
