Technical Specifications of the Deutz Fahr 5100 Tractor:
Deutz Fahr 5100 is an agricultural tractor produced between 2013 and 2017, equipped with a four-cylinder TCD 3.6 L4 engine with a displacement of 3620 cm³, featuring a turbocharger and an intercooler. It delivers a maximum power of 95 HP at 2200 rpm and a torque of 397 Nm at 1600 rpm. The piston dimensions are 98 mm in diameter and 120 mm in stroke. The tractor offers a transmission with either 10 forward and 10 reverse gears or 30 forward and 30 reverse gears, featuring a high-speed function on three gears and a hydraulic shuttle. The maximum driving speed is 40 km/h, with an optional 50 km/h version. The hydraulic system has a flow rate of 60 l/min, with an option to increase to 90 l/min, while the electronically controlled rear hitch (EHR) supports a lifting capacity of up to 4650 kg. The PTO operates at speeds of 540 and 750 rpm. The turning radius with 4WD is 7 m. The front tire size in the 4WD model is 420/70R24, while the rear tires are 480/70R34. The tractor weighs 4450 kg in the 4WD version, with dimensions of 427 cm in length, 243 cm in width, and 269 cm in height. The fuel tank capacity is 165 liters, and the cabin noise level is 72 dB.
Advertisement
Technical Data Sheet for Deutz Fahr 5100, 5110, 5120, 5130 Tractors:
Model | Deutz Fahr 5100 | Deutz Fahr 5110 | Deutz Fahr 5120 | Deutz Fahr 5130 |
Years of production | 2013-17 | 2013-17 | 2013-17 | 2014-17 |
Engine model / type | TCD 3.6 L4 | TCD 3.6 L4 | TCD 3.6 L4 | TCD 3.6 L4 |
Number of cylinders / turbocharging | 4TI | 4TI | 4TI | 4TI |
Engine displacement (cm3) | 3620 | 3620 | 3620 | 3620 |
Piston dimension / stroke (mm) | 98×120 | 98×120 | 98×120 | 98×120 |
Maximum engine power (hp) / rpm | 95/2200 | 105/2200 | 113/2200 | 120/2200 |
Torque (Nm) / rpm | 397/1600 | 440/1600 | 460/1600 | 480/1600 |
Number of gears (front + rear) | 10+10/30+30 | 10+10/30+30 | 10+10/30+30 | 10+10/30+30 |
Number of synchronized gears (front+rear) | 10+10/30+30 | 10+10/30+30 | 10+10/30+30 | 10+10/30+30 |
Advertisement
Speed-Shift | 3 | 3 | 3 | 3 |
Type of reverse | hydr | hydr | hydr | hydr |
Driving speed (km/h) | – | – | – | – |
Max Driving speed (km/h) | 40/40 (50) | 40/40 (50) | 40/40 (50) | 40/40 (50) |
Hydraulic pump capacity (L/min) | 60 (90) | 60 (90) | 60 (90) | 60 (90) |
3-Point Hitch control | ehr | ehr | ehr | ehr |
3-point hitch max load (kg) | 4650 | 4650 | 4650 | 4650 |
PTO speed (rpm) | 540/750/ | 540/750/ | 540/750/ | 540/750/ |
Disc brake type (dry / wet) | – | – | – | – |
Type of control of the braking system | – | – | – | – |
Turning radius 2WD (m) | – | – | – | – |
Turning radius 4WD (m) | 7 | 7 | 7 | 7 |
Advertisement
Front wheel 2WD | – | – | – | – |
Front wheel 4WD | 420/70R24 | 420/70R24 | 380/70R28 | 420/70R28 |
Rear wheel 2WD | – | – | – | – |
Rear wheel 4WD | 480/70R34 | 480/70R34 | 480/70R38 | 520/70R38 |
2WD total weight (kg) | – | – | – | – |
4WD total weight (kg) | 4450 | 4450 | 4970 | 4970 |
Total height with cabin (cm) | 269 | 272 | 277 | 277 |
Total length (cm) | 427 | 427 | 427 | 427 |
Total width (cm) | 243 | 243 | 244 | 244 |
Fuel tank capacity (l) | 165 | 165 | 165 | 165 |
Cabin sound level (dB) | 72 | 72 | 72 | 72 |
Advertisement
Add your opinion and share the fuel consumption of the tractor Deutz Fahr 5100, 5110, 5120, 5130:

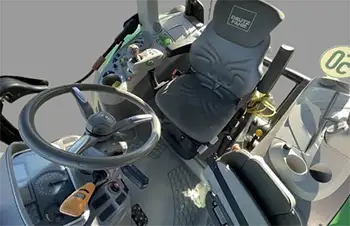

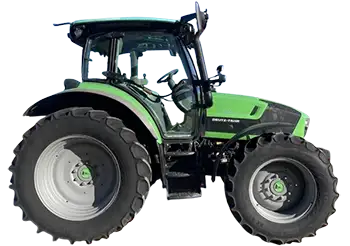

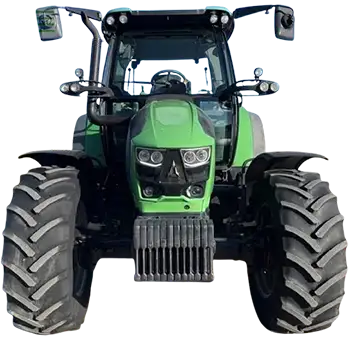

Deutz Fahr 5100, 5110, 5120, 5130 Gallery:
