Deutz Fahr DX 3.70

Deutz Fahr DX 3.10, DX 3.30, DX 3.50, DX 3.60, DX 3.65, DX 3.70, DX 3.90 – specs, opinions & photos

Looking for information about agricultural tractors Deutz Fahr DX 3.10, DX 3.30, DX 3.50, DX 3.60, DX 3.65, DX 3.70, DX 3.90? In this article, you'll find answers to questions such as:

  • How much horsepower does each model have?
  • What is the engine capacity of these models?
  • What is the hydraulic pump output for each one?
  • What is the PTO speed of these tractors?

With a spec sheet presented in table form, comparing the tractors is quick and easy, and user reviews will help you make the right choice.

Table of contents:

Technical specifications of the agricultural tractors Deutz Fahr DX 3.10, DX 3.30, DX 3.50, DX 3.60, DX 3.65, DX 3.70, DX 3.90:

Deutz Fahr DX 3.10
Deutz Fahr DX 3.30
Deutz Fahr DX 3.50
Deutz Fahr DX 3.60
Deutz Fahr DX 3.65
Deutz Fahr DX 3.70
Deutz Fahr DX 3.90

Deutz Fahr DX 3.10

  • Years of production: 84-90
  • Maximum engine power (HP) / at RPM: 46/2150
  • Number of gearbox speeds (forward + reverse): 16+8
  • Maximum speed (km/h): –
  • Fuel tank capacity (L): 82

Deutz Fahr DX 3.30

  • Years of production: 84-95
  • Maximum engine power (HP) / at RPM: 54/2500
  • Number of gearbox speeds (forward + reverse): 16+8
  • Maximum speed (km/h): –
  • Fuel tank capacity (L): 82

Deutz Fahr DX 3.50

  • Years of production: 84-95
  • Maximum engine power (HP) / at RPM: 61/2500
  • Number of gearbox speeds (forward + reverse): 16+8
  • Maximum speed (km/h): –
  • Fuel tank capacity (L): 83,5

Deutz Fahr DX 3.60

  • Years of production: 86-95
  • Maximum engine power (HP) / at RPM: 65/2350
  • Number of gearbox speeds (forward + reverse): 16+8
  • Maximum speed (km/h): –
  • Fuel tank capacity (L): 82

Deutz Fahr DX 3.65

  • Years of production: 88-95
  • Maximum engine power (HP) / at RPM: 70/2350
  • Number of gearbox speeds (forward + reverse): 16+8
  • Maximum speed (km/h): –
  • Fuel tank capacity (L): 82

Deutz Fahr DX 3.70

  • Years of production: 85-89
  • Maximum engine power (HP) / at RPM: 70/2350
  • Number of gearbox speeds (forward + reverse): 12+4
  • Maximum speed (km/h): –
  • Fuel tank capacity (L): 82

Deutz Fahr DX 3.90

  • Years of production: 85-89
  • Maximum engine power (HP) / at RPM: 75/2350
  • Number of gearbox speeds (forward + reverse): 12+4
  • Maximum speed (km/h): –
  • Fuel tank capacity (L): 82

For details and a comparison of the tractors, see the technical sheet below.

Advertisement


Technical Data Sheet for Deutz Fahr DX 3.10, DX 3.30, DX 3.50, DX 3.60, DX 3.65, DX 3.70, DX 3.90 Agricultural tractors:

Comparison of technical parameters of agricultural tractors
Model Deutz Fahr DX 3.10 Deutz Fahr DX 3.30 Deutz Fahr DX 3.50 Deutz Fahr DX 3.60 Deutz Fahr DX 3.65 Deutz Fahr DX 3.70 Deutz Fahr DX 3.90
Years of production 84-90 84-95 84-95 86-95 88-95 85-89 85-89
Engine designation/type F3L 912 F3L 912 F3L 913 F4L 912 F4L 912 F4L 912 F4L 913
Number of cylinders / Turbo / Intercooler 3 3 3 4 4 4 4
Engine displacement (cm³) 2827 2827 3060 3770 3770 3770 4086
Piston diameter / Stroke (mm) 100×120 100×120 100×123 100×120 100×120 100×120 102×123
Maximum engine power (HP) / at RPM 46/2150 54/2500 61/2500 65/2350 70/2350 70/2350 75/2350
Torque (Nm) / at RPM 175/1600 175/1600 195/1550 230/1550 234/1600 237/1600 260/1600
Number of gearbox speeds (forward + reverse) 16+8 16+8 16+8 16+8 16+8 12+4 12+4
Number of synchronized gears (forward + reverse) 16+8 16+8 16+8 16+8 16+8 12+4 12+4

Advertisement

Fast gearbox / Power shift – – – – – – –
Reverser type – – – – – – –
Speed range (km/h) 2,2-29,0 2,7-39,0 2,8-41,0 2,5-40,0 2,7-40,0 2,2-31,0 2,2-31,0
Maximum speed (km/h) – – – – – – –
Hydraulic pump capacity (L/min) 37 51 51 40 40 40 40
Rear three-point hitch (TUV) control type mech mech mech mech mech mech mech
Maximum rear three-point hitch (TUV) lift capacity (kg) 2400 2400 2400 2400 3300 2600/3300 2600/3300
Power take-off (PTO) speed (RPM) 540/1000 540/1000 540/1000 540/1000 540/1000 540/1000 540/1000
Type of disc brake (dry/wet) – – – – – – –
Brake system control type hydr hydr hydr hydr hydr hydr hydr
Turning radius 2WD (m) 8,2 8,2 8,2 8,26 8,8 8,8 –
Turning radius 4WD (m) 9 9 9 9,2 9,2 9,2 9,2

Advertisement

Front tire size 2WD 6,50-16 7,50-18 7,50-18 7,50-18 7,50-18 7,50-20 –
Front tire size 4WD 10,50-20 12,50-20 11,2R24 14,5R20 12,4R24 12,4R24 13,6R24
Rear tire size 2WD 12,4-32 14,9R30 13,6R36 16,9R30 16,9R34 16,9R34 –
Rear tire size 4WD 12,4-32 14,9R30 13,6R36 16,9R30 16,9R34 16,9R34 16,9R34
Total weight 2WD (kg) 3010 3120 3120 3065 3260 3550 –
Total weight 4WD (kg) 3210 3320 3320 3375 3610 3610 3780
Total height with cabin (cm) 243 243 243 253 258 257 257
Total length (cm) 356 356 363/367 373 380 391/401 391/401
Total width (cm) 201/208 201/208 201/208 225 225 233/239 233/239
Fuel tank capacity (L) 82 82 83,5 82 82 82 82
Cabin noise level (dB) – – – – – – –

Fuel consumption and user reviews of tractors Deutz Fahr DX 3.10, DX 3.30, DX 3.50, DX 3.60, DX 3.65, DX 3.70, DX 3.90:

Add your opinion:

Easy work 0.0 l/h
Medium work 0.0 l/h
Hard work 0.0 l/h

Opinions posted:

No opinions.

Average fuel consumption:

Easy - l/h
Medium - l/h
Hard - l/h

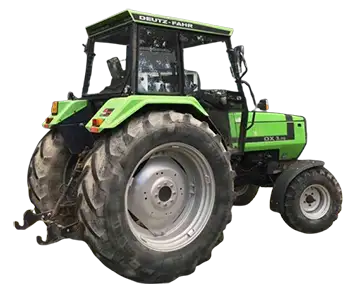

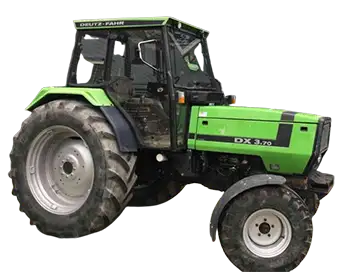

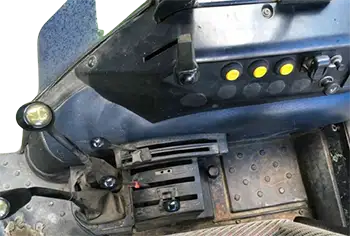

DX 3.10, DX 3.30, DX 3.50, DX 3.60, DX 3.65, DX 3.70, DX 3.90 Gallery:
