Renault 103 54

Renault 103-52/54 TS-TX, 106-54 TL, 110-54 TS-TX-TZ, 120-54 TS-TX-TZ, 133-54 TS-TX-TZ, 145-54 TX-TZ, 155-54 TX-TZ – specs, opinions & photos

Looking for information about agricultural tractors Renault 103-52/54 TS-TX, 106-54 TL, 110-54 TS-TX-TZ, 120-54 TS-TX-TZ, 133-54 TS-TX-TZ, 145-54 TX-TZ, 155-54 TX-TZ? In this article, you'll find answers to questions such as:

  • How much horsepower does each model have?
  • What is the engine capacity of these models?
  • What is the hydraulic pump output for each one?
  • What is the PTO speed of these tractors?

With a spec sheet presented in table form, comparing the tractors is quick and easy, and user reviews will help you make the right choice.

Table of contents:

Technical specifications of the agricultural tractors Renault 103-52/54 TS-TX, 106-54 TL, 110-54 TS-TX-TZ, 120-54 TS-TX-TZ, 133-54 TS-TX-TZ, 145-54 TX-TZ, 155-54 TX-TZ:

Renault 103-52/54 TS/TX
Renault 106-54 TL
Renault 110-54 TS/TX/TZ
Renault 120-54 TS/TX/TZ
Renault 133-54 TS/TX/TZ
Renault 145/54 TX/TZ
Renault 155-54 TX/TZ

Renault 103-52/54 TS/TX

  • Years of production: 91-97
  • Maximum engine power (HP) / at RPM: 93/2350
  • Number of gearbox speeds (forward + reverse): 16+16/24+8
  • Maximum speed (km/h): 30/40
  • Fuel tank capacity (L): 130

Renault 106-54 TL

  • Years of production: 92-00
  • Maximum engine power (HP) / at RPM: 100/2350
  • Number of gearbox speeds (forward + reverse): 16+16
  • Maximum speed (km/h): 40
  • Fuel tank capacity (L): 130

Renault 110-54 TS/TX/TZ

  • Years of production: 91-00
  • Maximum engine power (HP) / at RPM: 100/2350
  • Number of gearbox speeds (forward + reverse): 16+16/24+8
  • Maximum speed (km/h): 30/40
  • Fuel tank capacity (L): 225

Renault 120-54 TS/TX/TZ

  • Years of production: 91-00
  • Maximum engine power (HP) / at RPM: 110/2350
  • Number of gearbox speeds (forward + reverse): 16+16/24+8
  • Maximum speed (km/h): 30/40
  • Fuel tank capacity (L): 225

Renault 133-54 TS/TX/TZ

  • Years of production: 91-00
  • Maximum engine power (HP) / at RPM: 123/2350
  • Number of gearbox speeds (forward + reverse): 16+16/24+8
  • Maximum speed (km/h): 30/40
  • Fuel tank capacity (L): 225

Renault 145/54 TX/TZ

  • Years of production: 91-00
  • Maximum engine power (HP) / at RPM: 135/2350
  • Number of gearbox speeds (forward + reverse): 16+16/24+8
  • Maximum speed (km/h): 30/40
  • Fuel tank capacity (L): 225

Renault 155-54 TX/TZ

  • Years of production: 91-00
  • Maximum engine power (HP) / at RPM: 145/2350
  • Number of gearbox speeds (forward + reverse): 16+16/24+8
  • Maximum speed (km/h): 30/40
  • Fuel tank capacity (L): 225

For details and a comparison of the tractors, see the technical sheet below.

Advertisement


Technical Data Sheet for Renault 103-52/54 TS/TX, 106-54 TL, 110-54 TS/TX/TZ, 120-54 TS/TX/TZ, 133-54 TS/TX/TZ, 145/54 TX/TZ, 155-54 TX/TZ tractors:

Comparison of technical parameters of agricultural tractors
Model Renault 103-52/54 TS/TX Renault 106-54 TL Renault 110-54 TS/TX/TZ Renault 120-54 TS/TX/TZ Renault 133-54 TS/TX/TZ Renault 145/54 TX/TZ Renault 155-54 TX/TZ
Years of production 91-97 92-00 91-00 91-00 91-00 91-00 91-00
Engine designation/type MWM TD226-4 MWM D226-B6 MWM D226-6 MWM D226-6 MWM D226-6 MWM TD228-6 MWM TD226-B6
Number of cylinders / Turbo / Intercooler 4T 6 6 6 6 6T 6T
Engine displacement (cm³) 4156 6234 6234 6234 6234 6234 6234
Piston diameter / Stroke (mm) 105×120 100×120 100×120 100×120 105×120 105×120 105×120
Maximum engine power (HP) / at RPM 93/2350 100/2350 100/2350 110/2350 123/2350 135/2350 145/2350
Torque (Nm) / at RPM 316/1500 376/1500 385/1500 405/1500 412/1500 476/1500 543/1500
Number of gearbox speeds (forward + reverse) 16+16/24+8 16+16 16+16/24+8 16+16/24+8 16+16/24+8 16+16/24+8 16+16/24+8
Number of synchronized gears (forward + reverse) 16+16/24+8 16+16 16+16/24+8 16+16/24+8 16+16/24+8 16+16/24+8 16+16/24+8

Advertisement

Fast gearbox / Power shift mech/hydr mech mech/hydr mech/hydr mech/hydr mech/hydr mech/hydr
Reverser type mech mech mech mech mech mech mech
Speed range (km/h) 2,4-29,4 2,5-40,0 2,1-29,7 2,1-29,7 2,1-29,7 2,1-29,7 2,2-31,0
Maximum speed (km/h) 30/40 40 30/40 30/40 30/40 30/40 30/40
Hydraulic pump capacity (L/min) 73,8 46,4 74,1/81,1 74,1/81,1 74,1/81,1 74,1/81,1 74,1/81,1
Rear three-point hitch (TUV) control type mech/ehr mech/ehr mech/ehr mech/ehr mech/ehr ehr ehr
Maximum rear three-point hitch (TUV) lift capacity (kg) 6200 7120 7120 8680 8680 8680 8680
Power take-off (PTO) speed (RPM) 540 540/1000 540/1000 540/1000 540/1000 540/1000 540/1000
Type of disc brake (dry/wet) – – – – – – –
Brake system control type hydr hydr hydr hydr hydr hydr hydr
Turning radius 2WD (m) 8,4 – – – – – –
Turning radius 4WD (m) 9,2 10 10 10 10 10 10

Advertisement

Front tire size 2WD 9,00-16 – – – – – –
Front tire size 4WD 14,9-28 14,9-28 14,9-28 16,9-28 16,9-28 16,9-28 16,9-28
Rear tire size 2WD 16,9-38 – – – – – –
Rear tire size 4WD 16,9-38 16,9-38 16,9-38 18,4-38 18,4-38 18,4-38 20,8-38
Total weight 2WD (kg) – – – – – – –
Total weight 4WD (kg) 4725 4785 5395 5425 5585 5625 5625
Total height with cabin (cm) 286 290 290 295/302 295/302 295/302 295/302
Total length (cm) 430 455 460 460 460 460 460
Total width (cm) 252/248 274 274 274 274 274 274
Fuel tank capacity (L) 130 130 225 225 225 225 225
Cabin noise level (dB) 80 80/78 80/78 80/78 80/78 80/78 –

Fuel consumption and user reviews of tractors Renault 103-52, 54 TS, TX, 106-54 TL, 110-54 TS, TX, TZ, 120-54 TS, TX, TZ, 133-54 TS, TX, TZ, 145, 54 TX, TZ, 155-54 TX, TZ:

Add your opinion:

Easy work 0.0 l/h
Medium work 0.0 l/h
Hard work 0.0 l/h

Opinions posted:

No opinions.

Average fuel consumption:

Easy - l/h
Medium - l/h
Hard - l/h

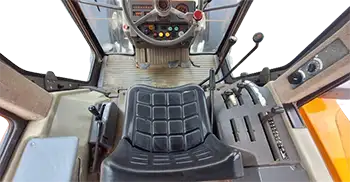

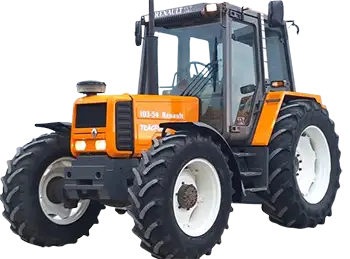

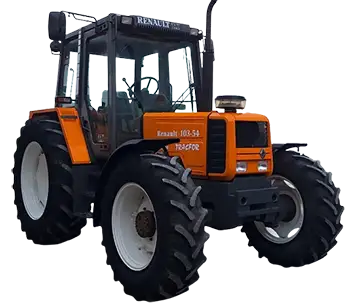

Renault 103-52/54 TS/TX – 155-54 TX/TZ Gallery:
