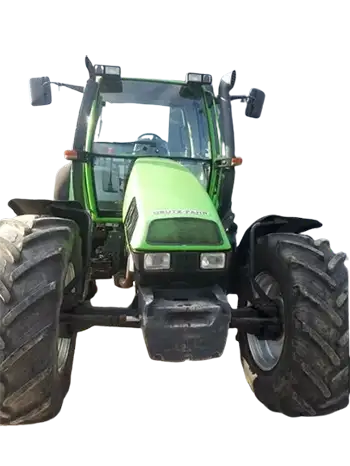

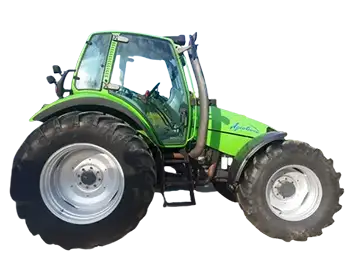

Technical specifications of the agricultural tractor Deutz Fahr Agrotron 6.00/6.05/6.15/6.20/6.30/6.45:
Advertisement
| Model | Deutz Fahr Agrotron 6.00 | Deutz Fahr Agrotron 6.05 | Deutz Fahr Agrotron 6.15 | Deutz Fahr Agrotron 6.20 | Deutz Fahr Agrotron 6.30 | Deutz Fahr Agrotron 6.45 |
| Years of production | 95-97 | 95-97 | 95-97 | 95-97 | 95-97 | 95-97 |
| Engine model / type | BF6L1012E | BF6L1012E | BF6L1012E | BF6L1013E | BF6L1013E | BF6L1013E |
| Number of cylinders / turbocharging | 6T | 6T | 6T | 6T | 6T | 6T |
| Engine displacement (cm3) | 4788 | 4788 | 4788 | 7146 | 7146 | 7146 |
| Piston dimension / stroke (mm) | 94×115 | 94×115 | 94×115 | 108×130 | 108×130 | 108×130 |
| Maximum engine power (hp) / rpm | 95/2300 | 105/2300 | 115/2300 | 115/2300 | 132/2300 | 145/2300 |
| Torque (Nm) / rpm | 380/1380 | 415/1380 | 445/1380 | 461/1380 | 520/1380 | 579/1380 |
| Number of gears (front + rear) | 24+8 | 24+8 | 24+8 | 24+8 | 24+8 | 24+8 |
| Number of synchronized gears (front+rear) | 24+8 | 24+8 | 24+8 | 24+8 | 24+8 | 24+8 |
Advertisement
| Speed-Shift | 4 | 4 | 4 | 4 | 4 | 4 |
| Type of reverse | hydr | hydr | hydr | hydr | hydr | hydr |
| Driving speed (km/h) | 2,8-39,3 | 2,8-39,3 | 2,8-39,3 | 2,8-39,3 | 2,9-41,0 | 2,9-41,0 |
| Max Driving speed (km/h) | – | – | – | – | – | – |
| Hydraulic pump capacity (L/min) | 83 | 83 | 83 | 83 | 83 | 83 |
| 3-Point Hitch control | ehr | ehr | ehr | ehr | ehr | ehr |
| 3-point hitch max load (kg) | 6220 | 9240 | 9240 | 9240 | 9240 | 9240 |
| PTO speed (rpm) | 540/1000 | 540/1000 | 540/1000 | 540/1000 | 540/1000 | 540/1000 |
| Disc brake type (dry / wet) | – | – | – | – | – | – |
| Type of control of the braking system | hydr | hydr | hydr | hydr | hydr | hydr |
| Turning radius 2WD (m) | – | – | – | – | – | – |
| Turning radius 4WD (m) | 9,9 | 9,9 | 9,9 | 9,9 | 9,9 | 9,9 |
Advertisement
| Front wheel 2WD | – | – | – | – | – | – |
| Front wheel 4WD | 16,9R24 | 16.9R24 | 16.9R24 | 16.9R24 | 16.9R28 | 16.9R28 |
| Rear wheel 2WD | – | – | – | – | – | – |
| Rear wheel 4WD | 18.4R38 | 18.4R38 | 18.4R38 | 18.4R38 | 20,8R38 | 20,8R38 |
| 2WD total weight (kg) | – | – | – | – | – | – |
| 4WD total weight (kg) | 5010 | 5010 | 5110 | 5360 | 5360 | 5390 |
| Total height with cabin (cm) | 286 | 286 | 286 | 286 | 296 | 296 |
| Total length (cm) | 452 | 452 | 452 | 468 | 468 | 468 |
| Total width (cm) | 265 | 265 | 265 | 277 | 277 | 277 |
| Fuel tank capacity (l) | 260 | 260 | 260 | 260 | 260 | 260 |
| Cabin sound level (dB) | 74,5 | 74,5 | 74,5 | 74,5 | 74,5 | 74,5 |
